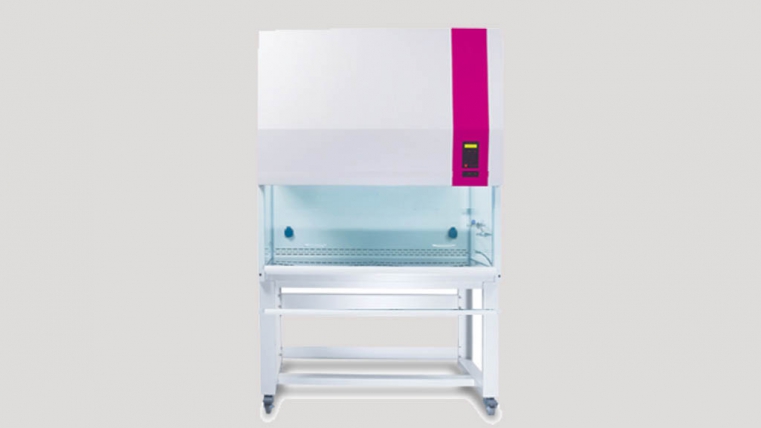

Microbiological Safety Cabinet

Microbiological Safety Cabinet

Class II Type A2 bio safety cabinet

  • – Air circulation : 70% recirculation & 30% exhaust through HEPA filter
  • – Digital Controller with LCD display
  • – FL lamp On/Off, UV lamp On/Off, UV lamp timer, Total using time
  • – Utility : gas cock & valve 1EA / air cock & valve 1EA
  • – Wall mounted consent 2EA
  • – Differential pressure gauge included
  • – HEPA filter : 0.3㎛ particle removal 99.995%
  • – Glass door : mono weight balanced sliding tempered safety glass 5mm
  • – Base stand included
  • – Power : 230V 50/60Hz

Class II Type A2

Class ll type A2 biological safety cabinet that protects the user and lab environment from the biohazard factor and prevents cross contamination of various samples used in experiments.

Suitable for laboratories requiring higher levels of safety grade 2

Intake air and working chamber air are drawn to the under plenum of the worktop bench ensuring user safety in assured.

70% recirculated air is filtered with the HEPA filter, ensuring product safety is assured.

30% exhausting air is emitted through the HEPA filter, which complies with the environmental safety requirements of the laboratory.

Equipment that enables safe UV sterilizer

UV sterilization will affect microorganisms at the surface of work table.

While UV light is on, front reinforcement glass door protects the user by blocking UV rays.

Automatically turns off UV light when opening the door or turning on the fluorescent lamp.

Checking the life and performance of filters through a differential pressure gauge

Measure the pressure of the bottom HEPA filter to check the performance and lifespan of the filter in real time, allowing more safe and effective testing.

Front-side 10 degree tilting design for user’s convenience

Ergonomic 10 degrees tilting design allows users to make a convenient posture during experiment, which enables user’s neck, shoulders and back comfortable despite long work with the cabinet.
Also user’s eyes can be protected from the reflection of light to the glass surface by this tilting design.

Strengthen sample and user safety

Protect specimen and user’s safety by inflow and downflow control.

Internal air pressure is maintained with negative pressure compared to the outside, preventing the contaminated air from escaping through the gaps.

High performance motor to maintain the set airflow velocity

Regardless of filter loads, airflow velocity can be maintained at the set value through the high performance motor

Easy and quick maintenance due to short filter replacement time

The filters can be replaced in any direction in front or upper of the cabinet, minimizing the time required for maintenance to be maintained regardless of the installation conditions.

Strengthen validation support using higher performance filters

HEPA filter that enables to remove 99.995% of particles that have a size greater than or equal to 0.3㎛

Optional ULPA filter that enables to remove 99.9995% of particles that have a size greater than or equal to 0.12㎛
